Standard AK47 Fixed Stock Receiver Flat
  • Standard AK47 Fixed Stock Receiver Flat

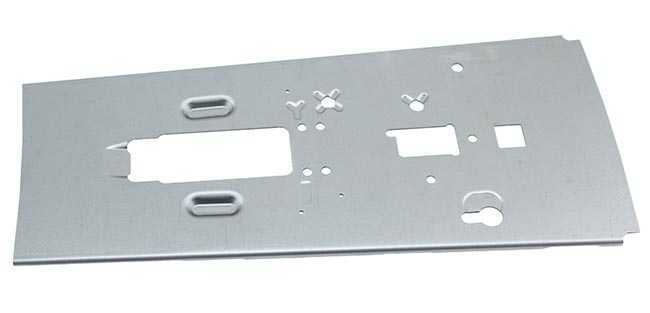

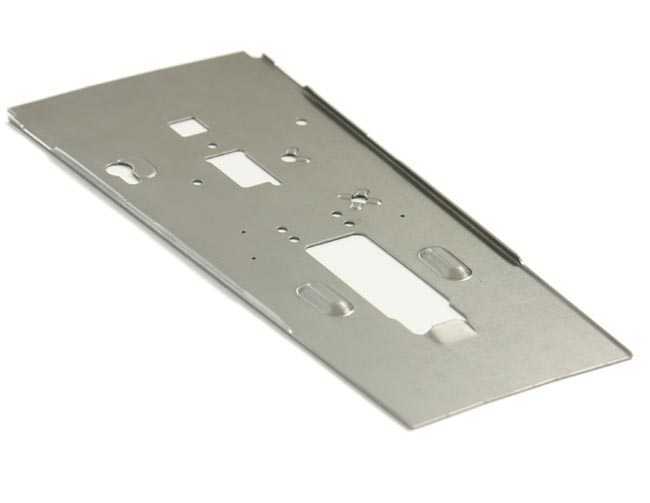

Standard AK47 Fixed Stock 7.62 Flat

CODE: B1-71


Price: $24.95

34 item(s)
  • Top Rail Bent, Stepped and Trimmed

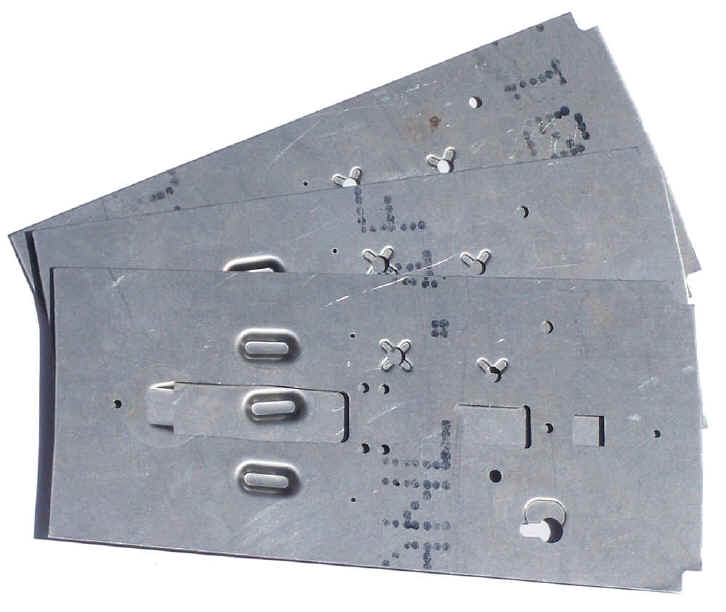

These flats can be used for about any 1mm thick 7.62 receiver.  Without the trunnion holes you can put any rear trunnion on the receiver once bent.

  • Receiver flat thickness= 1mm (.040")
  • Material 4130 Annealed
  • Comes with bolt guide rails
  • Rails and flat need to be heat treated after bending


Reccomended rivets and center support (not included with flat)

  • AKM Fixed Stock Rivet Set
  • 1mm Center Support

Alignment Hole Option

If you are using my new bending die you DO NOT need the alignment holes.  The alignment holes are for the outdated bending tools.



To use these flats you will need to have a 5mm and 7mm reamer.  The physics of bending sheet metal make it next to impossible to have a bend close to a hole without distorting.  To solve this the holes on the flat are undersized and need to be reamed to size after bending.  Look at the receiver flat instruction page to see more info.

The rails that will come with the flats are pictured below. They have mag stabilizers on both rails to keep the mag from tilting and causing feed problems.  Before installing the rails you will need to trim the mag stabilizers to match the caliber of flat you are using.



AK RECEIVER LOER BOLT GUIDE RAILS
