NEW AK-Builder Receiver Blank Drilling Fixture 7.62 & 5.45

Brand:
$99.95
V-4
In Stock
+
Add to wish list

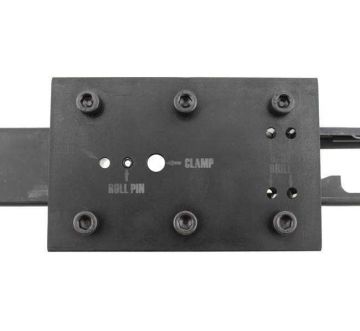

AK-BUILDER Receiver Blank Drilling Fixture

This tool is designed to be used with 1mm 80% receivers with OR without rails and center supports installed. The bottom of the fixture is also setup to be used if your receiver has trigger humps.  The fixture is machined and heat treated to last through the drilling of several blanks. Tool has a black oxide coating and the holes are laser marked with the proper drill bit sizes.

Drills Hammer Pin, Trigger Pin, Selector Lever, Center Support & Trigger Guard Holes

Drill Bits Included: 5/32", 7/32", 5mm, 7mm, 10mm

The stop pin for the rear of the trigger opening is the key to getting it aligned in the fixture.
After that it's just as simple as putting in the receiver support and setting the fixture on the aluminum plate on your drill press.

C2-22
$9.95
This drill bit is for drilling the large selector hole on the right side of the receiver. This makes the larger side of the keyhole.  Get our 7/32 drill...
In Stock
+
Add to wish list

C2-23
$4.50
This drill bit is for drilling the front edge of the keyhole for the selector on the right side of the receiver. US Made by Precision Twist Drill....
In Stock
+
Add to wish list

C1-72
$2.95
These are the same drills I use in the Rivet Drilling tool, drilling gas piston rivet holes and for drilling holes for the 4mm rivet holes in receivers....
In Stock
+
Add to wish list

C7-24
$3.10
HSS Screw Machine - Drills Size: 0.1969 In., 5.00 mm Flute Length: 1-1/32, 26 mm Overall Length: 2-7/16, 62 mm Finish/Coating: Black Oxide...
In Stock
+
Add to wish list

C1-71
$3.25
This drill is used for drilling holes for the 4.5mm rivet holes in the bent receivers as well as opening the hammer pin hole on my flats before reaming to...
In Stock
+
Add to wish list

C1-73
$4.50
US Made by Precision Twist Drill Screw Machine - Drills Size: 0.2756 In., 7.00 mm Flute Length: 1-11/32, 34 mm Overall Length: 2-29/32, 74 mm...
In Stock
+
Add to wish list
